智能缝纫机MLK-311H 电脑针车 电脑花样机 智能缝纫机

加工定制 种类 缝纫机 用途 缝纫设备
自动化程度 全自动 适用厚度范围 厚料机 线迹类型 包缝机
品牌 名菱 型号 MLK-311H 适用场所 工厂用
作用对象 皮革 驱动形式 电动 针数 单针
机头数 单头机 产品类型 全新 整机重量 160(Kg)
产品别名 缝纫机

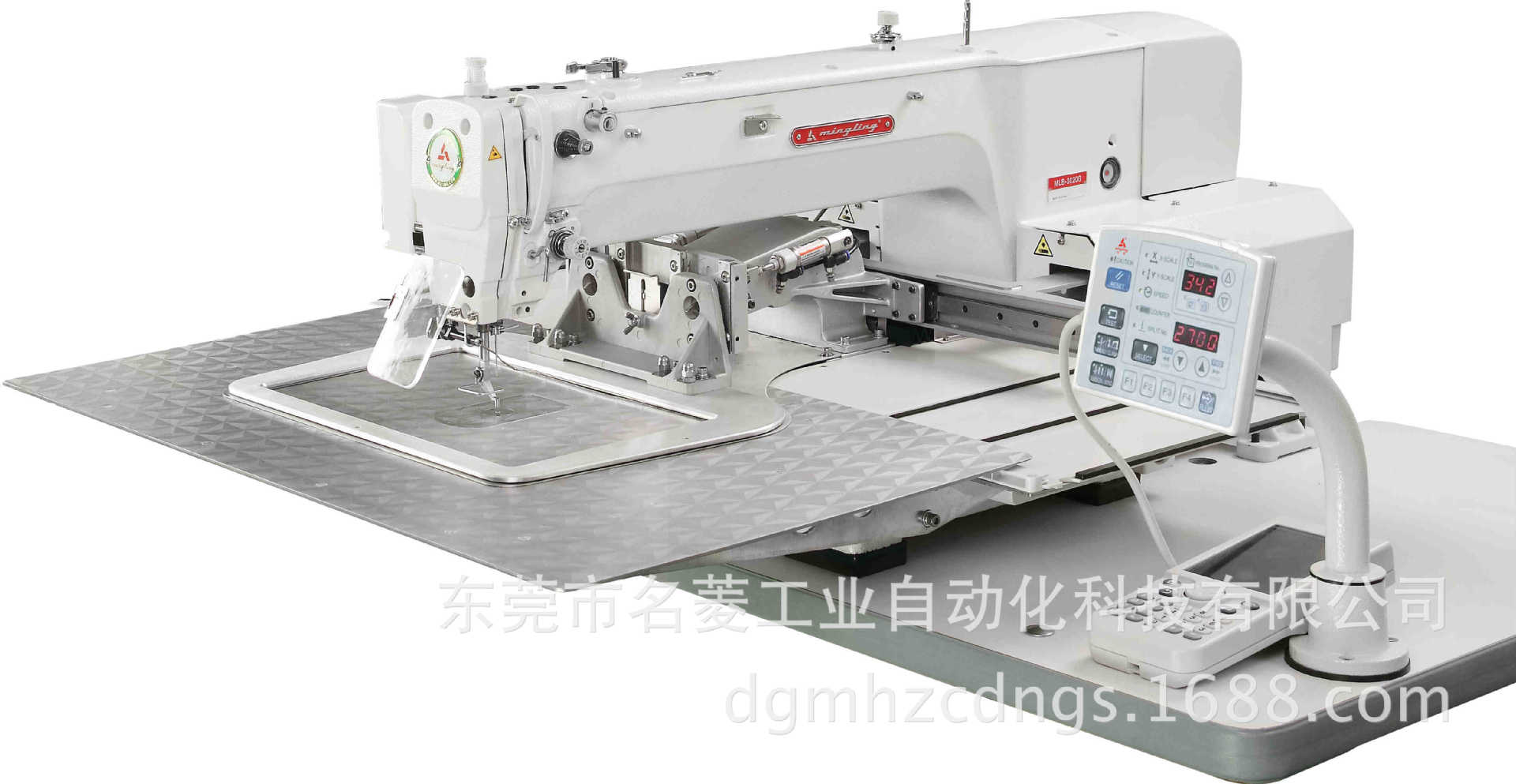

直接驱动式Direct drive

     程序式电脑花饰机

     PROGRAMMER COMPUTERISED PATTERN SEWING MACHINE

    · 线迹精美,可靠的花饰缝纫

      Fine stitchs,reliable floriation sewing

   · 最高缝纫速度2,700 针/分钟(使用3.5mm 针距)

      Maximum sewing speed 2700 neddle /min (using the 3.5mm stitch)

    · 强大的机针贯穿力

     Powerful needle penetration force

    · 电耗低,经济实用

     And low power consumption, economic utility

    · 使用两步下降的大压脚轻松定位布料

     Use a double stage clamp easily to locate the material



高速缝纫且线迹美观,实现了世界上最快的缝纫速度,在节能的同时实现了优良的缝纫质量和生产高效率。

High-speed sewing and beautiful stitch, realizes the fastest sewing speed in the world, while energy saving achieve excellent sewing quality and production efficiency.

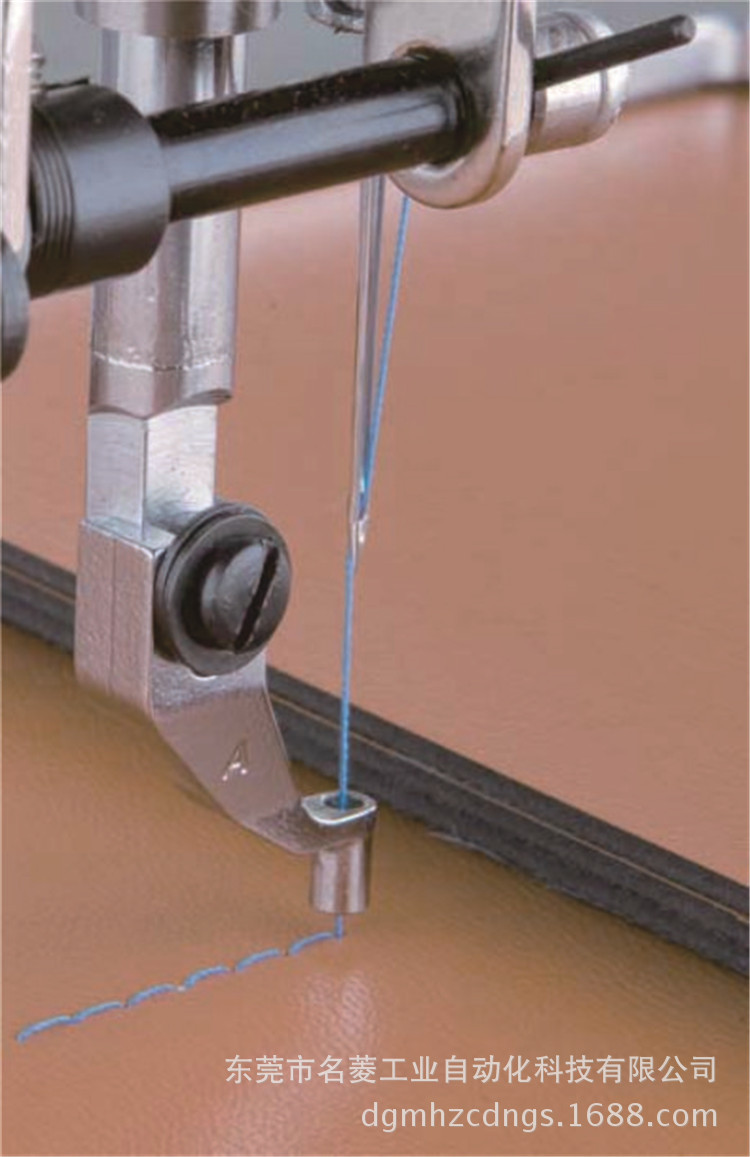

缝制精美线迹Beautiful stitch sewing

由于落针准确,设备能够缝制出精美的平行线迹和正面线迹。采用了伺服控制和钢性提高的送布装置,因此可缝制出高精度图案,即使高速缝纫或缝纫厚料时,也不会发生电脑花饰机常有的不良线迹和偏位问题。

Because of falling needle accurately, equipment can sew fine parallel lines and positive
stitch. UseThe servo control and steel improved cloth feeding device, so you can sew a
high precision pattern, i.e.The high-speed sewing or sewing thick material, also won't
happened fine stitching, and aviod to bad stitchAnd deviation problem.



最高缝纫速度2,700针/分钟(使用3.5mm针距)



Highest  sewing speed 2700stitches/min using stitch (3.5mm)

实现了使用3.5mm针码缝纫时2,700针/分钟的高速缝纫。由于采用了名菱公司独创的电脑直接驱动式马达,起动/停车反应更快。与传统机型相比机械操作时间缩短了约28%,生产效率得到进一步提高。
Achieved using 3.5mm stitch sewing 2700 / min high-speed sewing. Due to the adoption of the mingling
Corporation the original direct drive servo motor, starting / stopping reaction faster. Compared with the
traditional model of mechanical operation time shortened by about 28%, the production efficiency is improved.

机针贯穿力得以加强

Increased high penetration force

与传统机型相比,使用电脑直接驱动式马达的设备功率更强劲(550W)。即使在低速缝纫时也可获得强大的机针贯穿力,厚料的缝制也能顺利进行。

Compared with the traditional model, the use of servo motor more stronger than motor (550W).
Even in the low-speed sewing can get strong penetration force, and sewing to the thick materials can be successfully.

耗电低Low power consumption

电脑直接驱动式机械系统中采用了高效节能的马达,可减少传输过程中的能量损耗。与传统型号相比,耗电减少了约15%。与市场上同类缝纫机型相比,本设备是电耗最低的电脑花饰机,同时实现了高速缝纫和强大的机针贯穿力。

Computer direct drive type mechanical system uses a motor with high efficiency and energy saving, can reduce the transmission process. Compared with the traditional model, the power consumption is reduced about 15% compared with the market similar sewing models, this equipment is the lowest power consumption of computer decoration, and realizes high-speed sewing and strong high speed sewing machine with high penetration force.

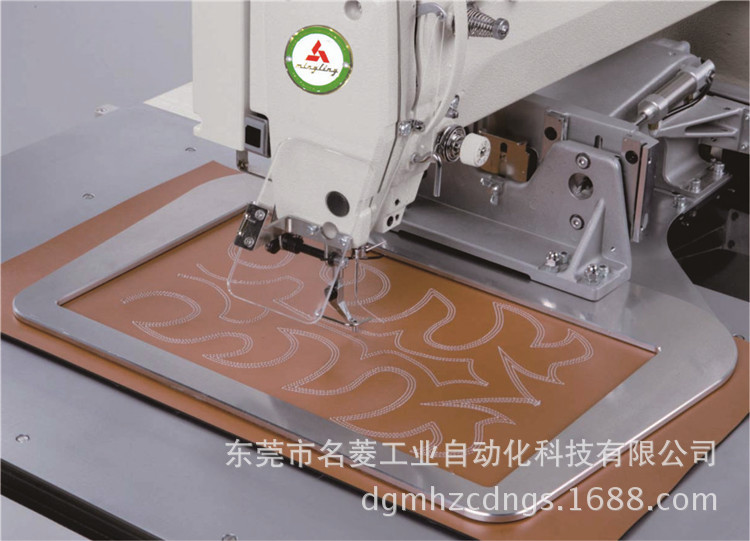

轻松准确地定位布料Easily and accurately positioning of cloth

设定了两步下降的大压脚,大压脚可下降并暂停在中间位置,然后下降到最低点。在中位设置一个合适的高度,便可快速准确地定位布料。这可以减少由于错误定位缝制物而造成的额外操作,从而节省了缝纫的总循环时间。
Set a double step clamp, clamp can be stop and suspended in the middle position, and then down to the lowest point. Can set up a suitable height in the middle position, can quickly and accurately positioning the material. This can be reduce the extra operation caused by the positioning error of the sewing matter, saving the total cycle time during sewing.



缝制图案轻松变换Easily transformation of sewing pattern

大压脚更换快速Simple to change clamp

拆卸4颗螺丝即可快速更换大压脚。也可通过定位销准确安装。

Remove the 4 screws to replaced clamp, also can be installed to the accurate position rapidly.



准确定位以更换送布板Accurate positioning in order to change the feed plate

对准送布板和底板的参照孔,将送布板装到底板上,拧紧螺栓,即可完成安装。可方便地准确定位送布板。

According to the reference of the feeding plate to the bottom plate hole,the feeding plate easily
cna fix on the bottom  plate, tighten the bolts to complete the installation. Accurate positioning of plate can be conveniently fix up.

内置大容量内存Set to large capacity of memory

缝纫机可在其内存中存储大量数据(512个图案,500,000针*)。每次更改缝纫图案后无需重新装载缝纫图案。另外,CF卡(CompactFlash)闪存卡用作于存储媒介,读写速度加快,可将大量数据复制或转移至其他缝纫机或电脑中以便进行数据管理。
The sewing machine can be stored in the memory of large amounts of data (512 patterns, 500000 stitches *). Every time you can change pattern without reloading the sewing pattern. In addition, the CF card (Compact Flash) flash memory card with to the storage media, read and write speed, large amounts of data can be copied or transferred to other sewing machine or electric copy or transfer to other sewing machine or computer fo data management.



PD3000*,一款具有彩色大液晶显示屏及操作简单的编辑器

PD3000*,-Large and simple color crystal operation panel

· 根据图标和命令,轻松创建缝纫数据。
· 缝纫数据可边创建边检查。可显示注释、形状、水平和垂直尺寸以及缝纫图案的针脚数。

· 缝纫数据列表与图案形状同时显示,可轻松复制或转移缝纫数据。此编辑器适用于缝
  纫数据管理。
· 可确认内存开关的说明和现在的设定值。

· 支持的语言有英语、中文、西班牙语、意大利语、法语、德语、葡萄牙语、土耳其语、
  越南语和日语。

~ Based on the icon and command, easily create sewing data.
~ Sewing data can be created while inspection. Can display comments, shape, horizontal and vertical dimensions and the sewing pattern stitches.
~ Sewing data list and sewing pattern shape at the same time, can easily copy or transfer of sewing data. This editor is suitable for sewing data management.
~ Can confirm the memory switch instructions and value setting
~ Supported languages are English, Spanish, Italian, Chinese, French, German, Portuguese, Turkish, Vietnamese and Japanese.



环保理念Environmental  protection concept

名菱公司创造了“绿色标签”,对符合ISO14021国际行业标准和JIS Q14021日本行业标准的产品进行分类。MLK-342G 符合此标准。这两种型号是环保型产品,由于“使用直接驱动系统,达到业界最高节能水平”,“在所有电路板中使用无铅焊锡”及“降低了包装材料的消耗量”等等的实现,是保护地球环境的缝纫机。

Ming Ling company created "green label", carries on the classification to meet ISO14021 international industry standards and JIS Q14021 Japan industry standard products. MLK-342G meets this standard.These two models are environmental protection product, because "the use of direct drive system, achieve the industry's highest energy level", "the use of lead-free solder" and reduce the"packaging materials "and so on, is to protect the earth's environment sewing machine.



实现低张力平稳缝纫To realize low tension stable sewing

伺服控制的高钢性送布装置,同步度极高的针杆/挑线杆装置,可在低张力的情况下进行底面线收线一致的缝制。

Servo control of high steel material feeding device, synchronization high degree of needle bar / take-up device, can be carried out under the condition of low tension of upper and bottom  thread sewing.

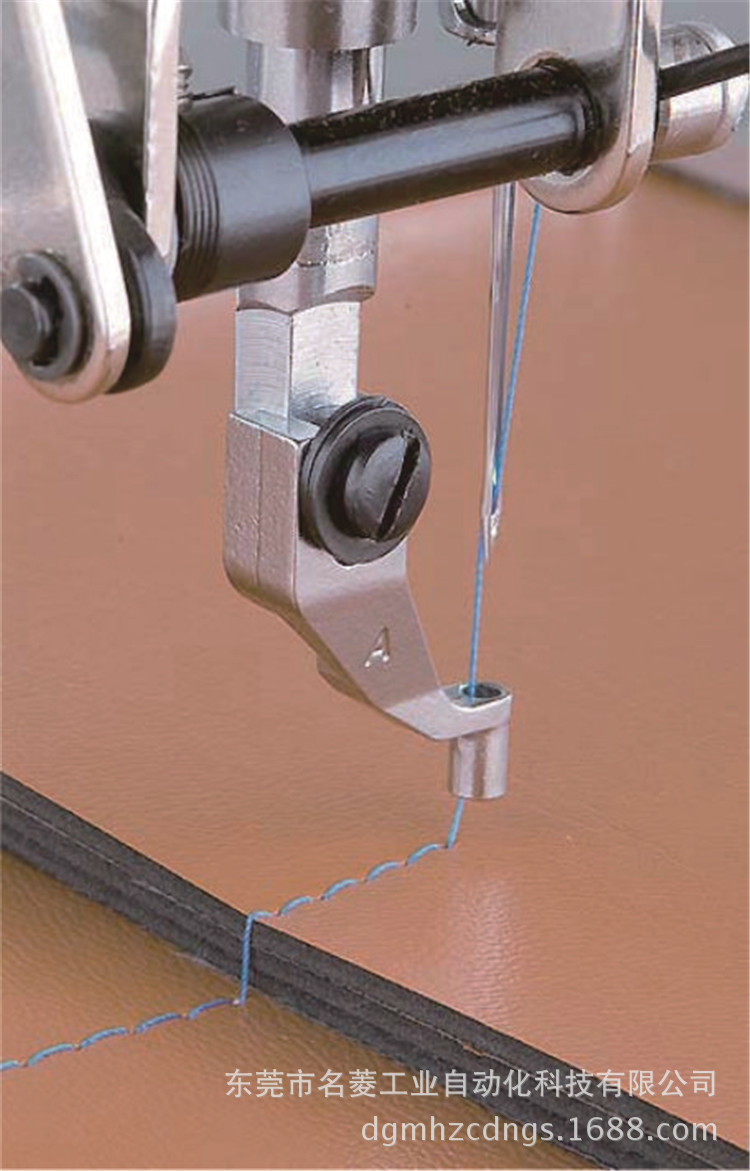

即使在布料重叠部位,也能使底面线松紧度保持一致

The overlapping part eventhough in material, also can make the bottom thread tightness consistent.

可在操作盘上输入一个数值轻松设置压脚的高度。根据布料的厚度设置一个合适的压脚高度可防止过多或不足的压脚下压操作,从而使底面线松紧度保持一致。使用编程器PD-3000*,可在缝纫数据中设置中间压脚高度。由于可设置高度,所以高度可根据布料厚度的改变而改变。

Can easily enter a number on operation panel and set the pressure foot height. According to the
thickness of the material set up appropriate height of pressure foot and prevent the excessive or
in sufficient pressure foot operation , so that the bottom thread tightness consistent.The use of PD-3000* programmer can set the middle height of pressure foot in sewing data.Pressure foot height setting can be changed according to the material thickness.

无需倾斜机头就可调节驱动针护板

Without tilting the machine head can be adjusted by driving a needle guard

无需倾斜机头,可轻松从机床侧面调节驱动针护板。
无需倾斜机头,也可调整机针与旋梭尖之间的间隙。

No need to tilt the machine head, can be easily adjusted by driving needle guard.
No need to tilt the machine head, also can adjust machine between the  needle and hook point.

视野宽阔清晰可见A wide field of vision is clearly visible

由于未安装压脚臂支撑板,从而使视野宽阔清晰可见,同时使缝纫检查和面料定位也更简单。

Due to not installed presser foot arm support plate, so that a wide field of vision is clearly visible, also make the sewing inspection and fabric positioning also more simple.

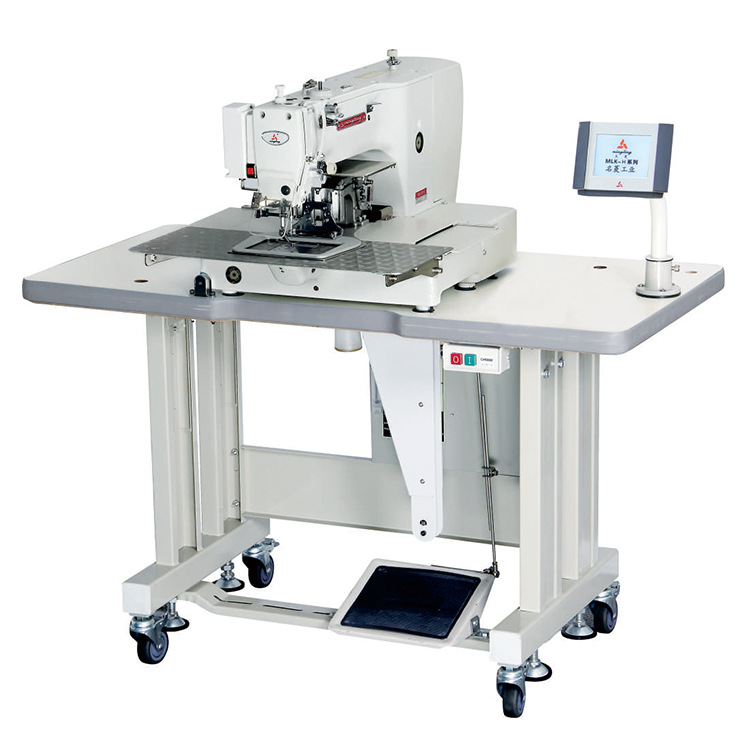

MLK-311H
机头 平缝缝纫机(两倍摆梭)
线迹Line 单针平缝
最高缝纫速度 2,800 rmp*
缝纫区域(X*Y) 最大(MAX) 130X100mm
送布装置 间歇送布(脉衡马达驱动)
针码 0.05 - 12.7mm(每隔0.05mm)
可存储针数 内置内存可存储 500,000 针*2
每个缝纫图案的最大针数 20,000针(1个图案) 2000(a pattern)
可存储缝纫图案数 内置内存:2GB,SD卡:900种类
大压脚驱动 气动
大压脚高度 最大(max) 35mm
大压脚降低 一体式压脚
间歇压脚上升量 22mm
间歇压脚行程 0, 2-4.5mm或4.5-10mm(出厂设置:3mm)
旋梭 两倍摆梭(标准摆梭为选购件)
扫线装置 标准设备
切线装置 标准设备
数据存储介质 内置内存(闪存),CF卡(32MB~2GB) [选购件] 3.5 英寸盘  2HD/1.44MB, 20D USB接口
用户程序数 50
循环程序数 9
马达 伺服马达750W
重量 机头:约160kg,操作面板:约0.6 kg, 控制箱:14.2~16.2kg(取决于目的地)
电源 单相220V,3相200V/220V/380V/400V/500VA
气压Air 0.5Mpa 1.81/min
